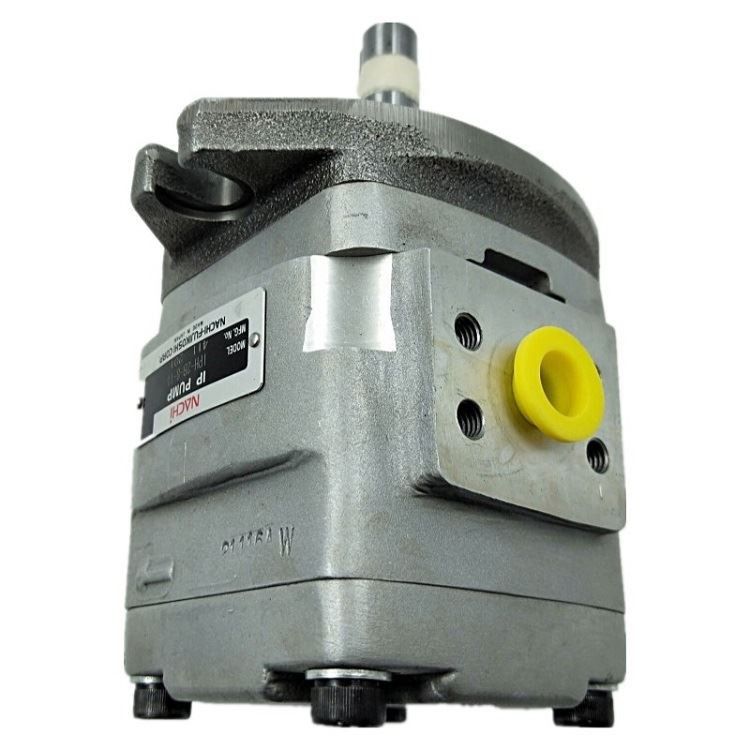

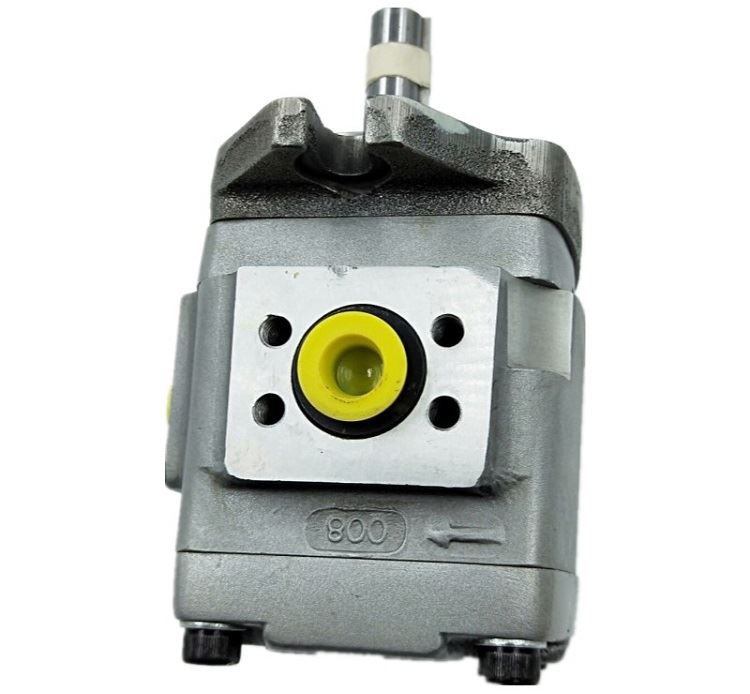

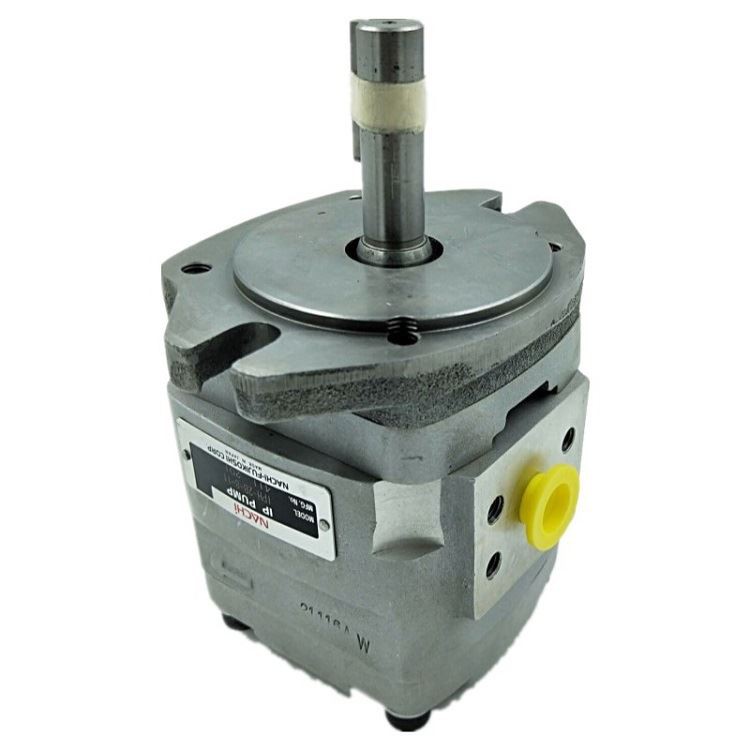

Nachi IPH Series Hydraulic Internal Gear Pump IPH-3B-6.5-3235 IPH-4A-32-LT-20 IPH-3A IPH-3B IPH-4A IPH-4B IPH-5A IPH-5B

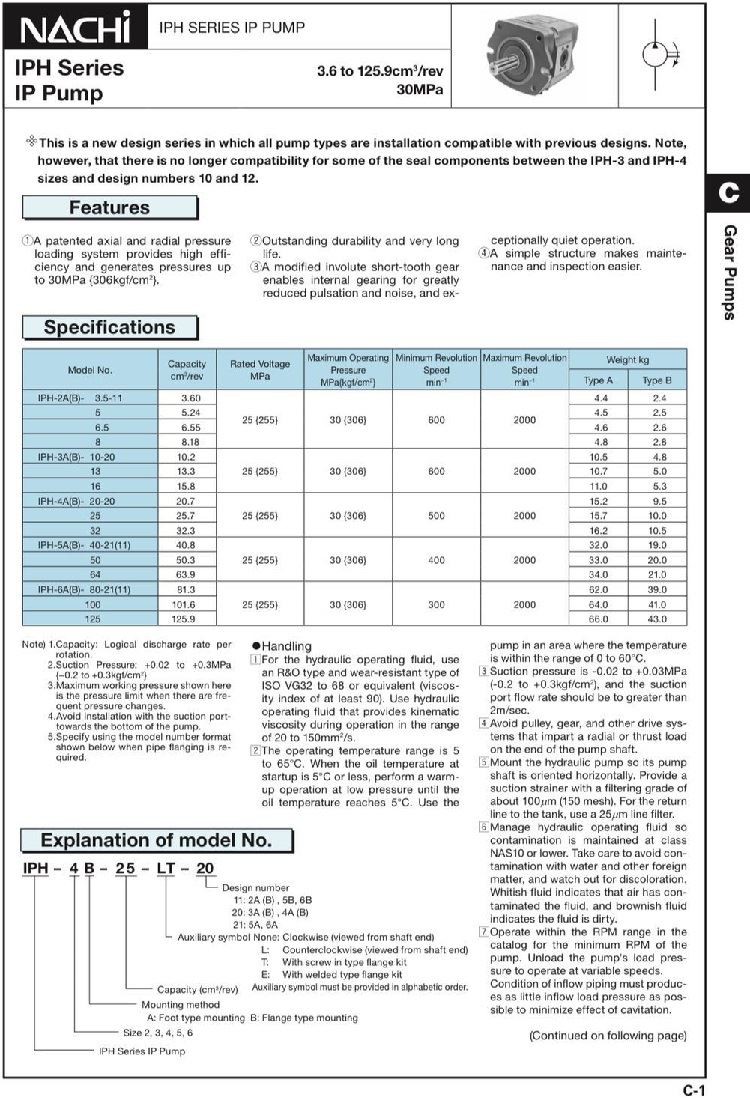

Note:

1. Capacity: Logical discharge rate per  rotation.

2. Suction Pressure: +0.02 to +0.3MPa  {−0.2 to +0.3kgf/cm2}

3. Maximum working pressure shown here  is the pressure limit when there are fre-quent pressure changes.

4. Avoid installation with the suction port-towards the bottom of the pump.
