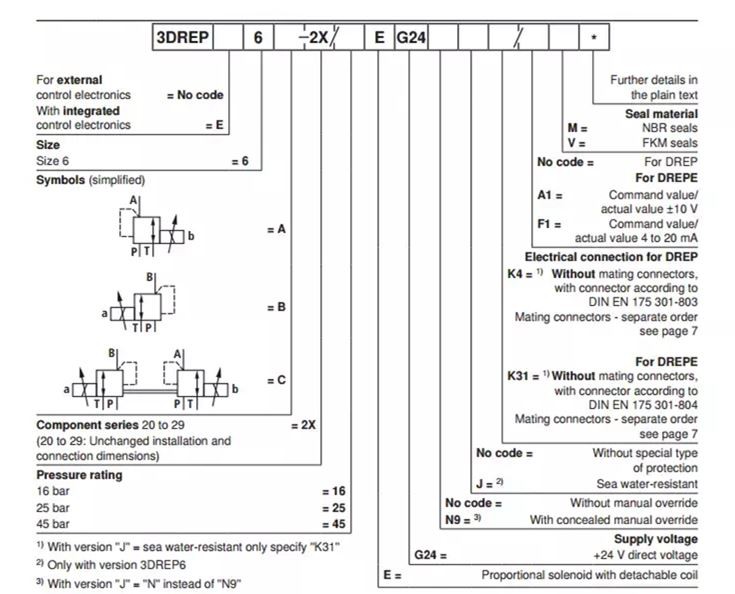

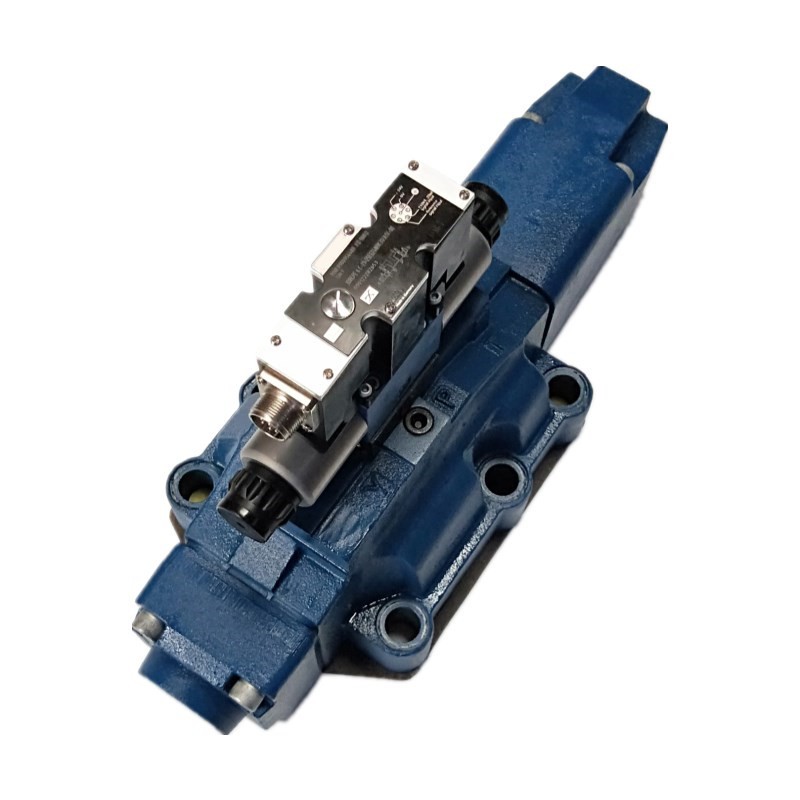

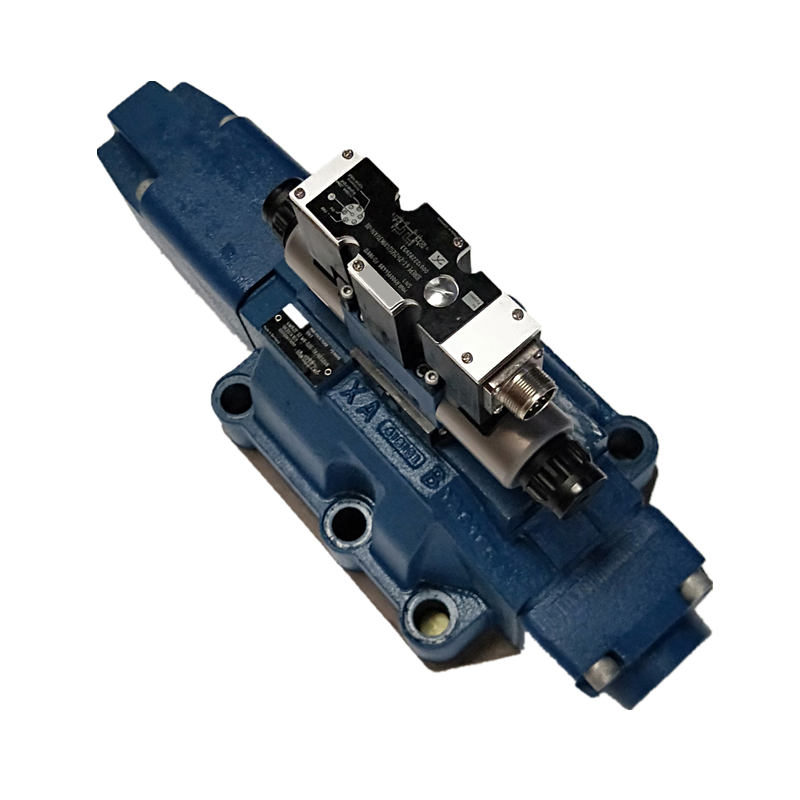

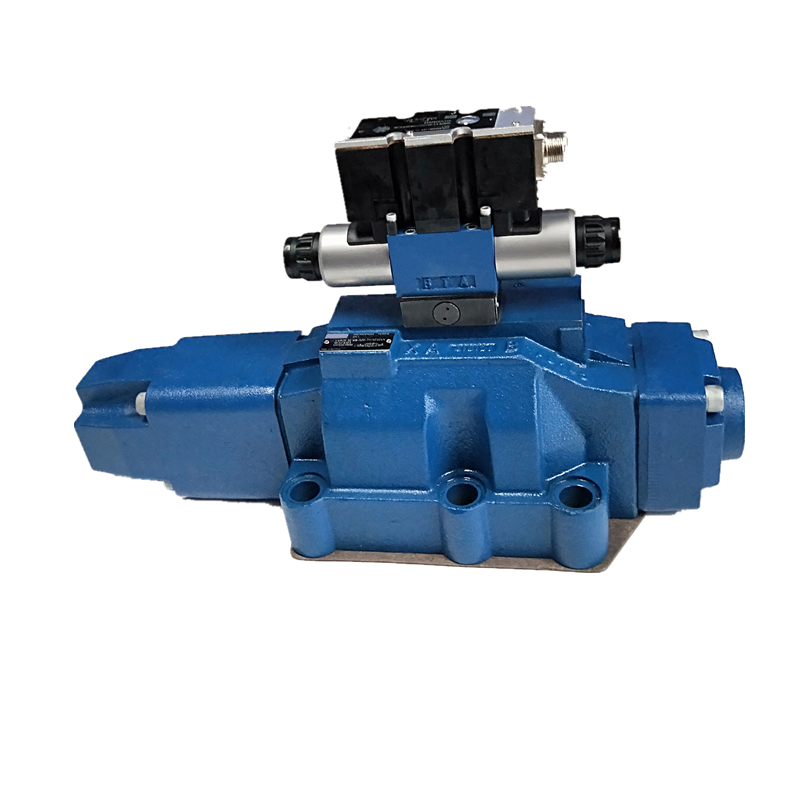

3DREPE6 3DREPE6A 3DREPE6B 3DREPE6C Series Hydraulic 100 bar Proportional Pressure Reducing Valves 3DREPE 6 B-21-25EG24N9K31/A M=00
3DREPE6 3DREPE6A 3DREPE6B 3DREPE6C Series Hydraulic 100 bar Proportional Pressure Reducing Valves 3DREPE 6 B-21-25EG24N9K31/A M=00 |
| Describe | |
| Maximum operating pressure | 100 bar |
| Maximum flow | 15 l/min |
| By energizing a proportional solenoid e.g. solenoid "a", the pressure measuring spool and with it the control spool are moved to the right. This opens the connection from P to B and A to T via orifice-type cross-sections with progressive flow characteristic. The pressure that builds up in channel B acts with the surface of the pressure measuring spool on the control spool and against the solenoid force. The pressure measuring spool is supported by the solenoid "b". If the pressure exceeds the value set at solenoid "a", the control spool is pushed back against the solenoid force and connects B with T until the set pressure is achieved again. The pressure is proportional to the solenoid current. | |
| The tank line must not be allowed to run empty. With corresponding installation conditions, a precharge valve (pre-charging pressure approx. 2 bar) must be installed. | |
